Flexible and Precise Plate Heat Sealing

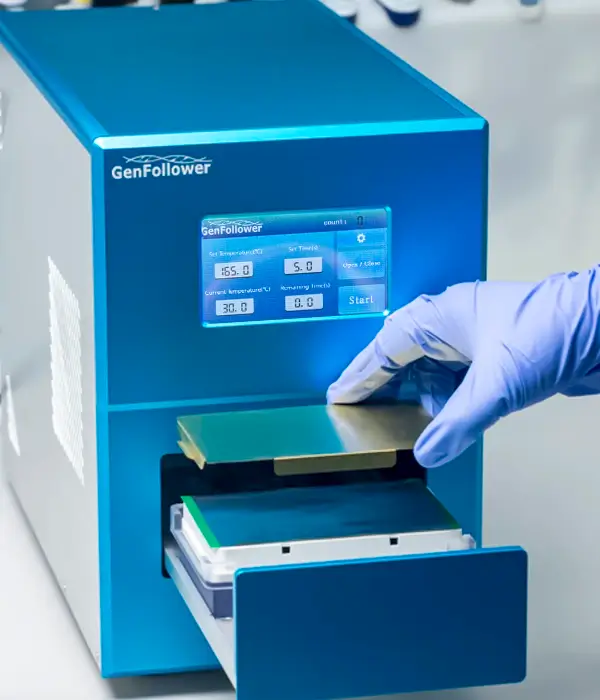

heat seal pcr plates

Fits your lab plates, seals like a pro

When you use the GenFollower plate heat sealing solution, you get precise temperature and pressure control, ensuring your films seal reliably every time. That means you won’t lose samples to evaporation or leakage during assays or storage, and your results stay trustworthy.

Plate Heat Sealing Set

Using GenFollower-recommended best-match accessories helps achieve more reliable sealing performance. The following is an optimal combination. You can also use it to seal PCR plates, deep-well plates, ELISA plates and cell-culture plates.

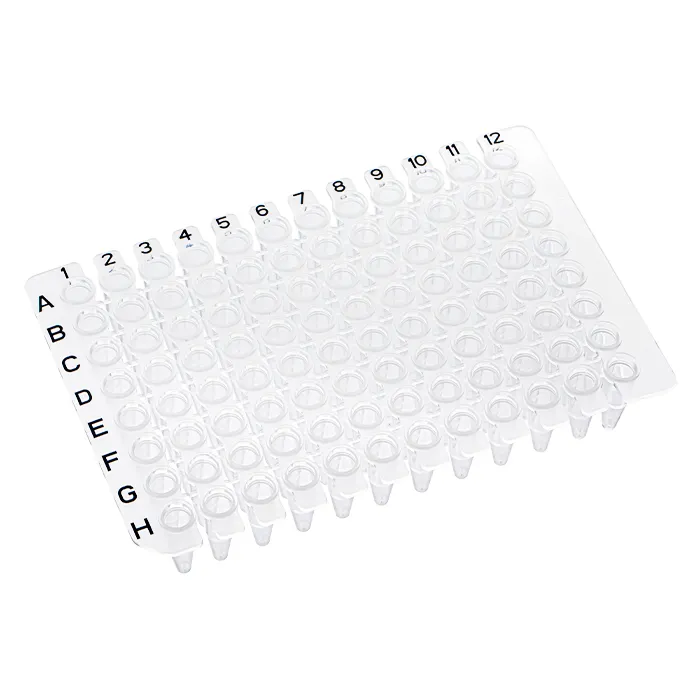

Cuttable PCR plates, 0.2ml, non-skirted.
Cuttable PCR Plates

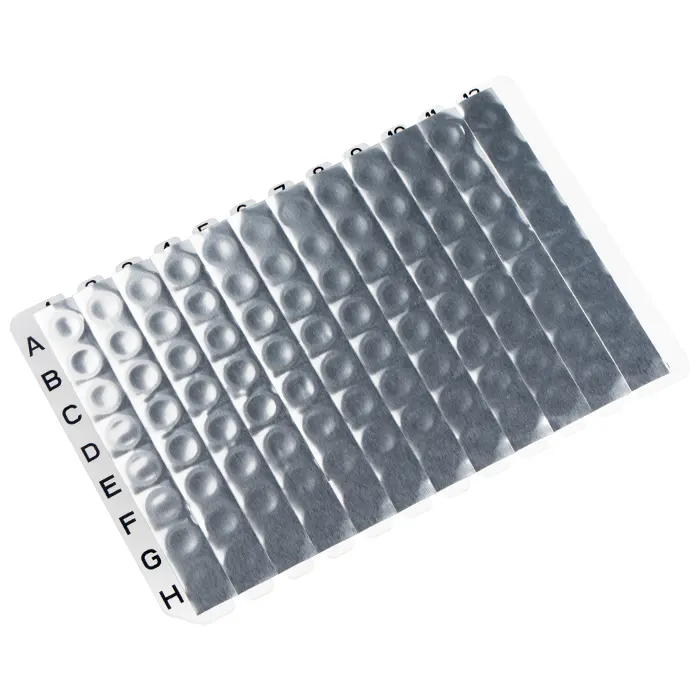

Cuttable heat sealing foil for PCR.
Cuttable Sealing Foil for PCR
Plate heat sealer HS-001.
Plate Heat Sealer HS-001

Uses of Plate Heat Sealing

Plate heat sealing is widely used in gene amplification experiments, blood sample cryostorage, public health and disease control analysis, and reagent kit manufacturing.

Seals like a professor

Set it the way you need

Consistent sealing

Microprocessor control and a well-balanced sealing plate ensure stable, repeatable sealing results.

Broad Compatibility

Supports multiple types of microplates and heat-seal films, such as PCR plates, ELISA plates and so on.

Flexible sealing setup

Adjustable sealing pressure and pressure heights to suit actual sealing conditions.

Heat Sealing Safety

The heat sealer features an anti-scald housing, an anti-pinch safety door, and a ceramic heating element with over-temperature protection.

Reduce Waste

When paired with cuttable PCR plates, you can split the plate into strips and use only the wells you need.

Tech Specs and Resources

Model HS-001
Sealing Temperature Range: 80°C to 200°C
Adjustment Step: 1°C
Accuracy: ±1°C, Uniformity: ±1°C
Heating Time: < 5 min (Ambient to 200°C)
Sealing Time Range: 1.0 to 10.0 seconds
Adjustment Step: 0.1 sec
Accuracy ±1°C
Compatibility PCR plates, deep-well plates, microtiter plates, cell culture plates
Warranty 1 year

Catalogues

Certificates

ISO 9001

ISO 9001

ISO 13485

ISO 13485

ISO 14001

ISO 14001

ISO 45001

ISO 45001

Frequently Asked Questions

The choice depends on the plate type, application and sealing temperature. We advise you to get in touch with us for technical support and film recommendations.

Yes. The key is to select appropriate storage conditions. However, long-term storage is not recommended once reagents have been added.

It depends on your plates. Other brands of sealing films may be used; however, sealing performance cannot be guaranteed. For optimal and consistent results, we recommend using validated film–sealer combinations.

GenFollower is a professional manufacturer with years of industry experience. Our products are sold in more than 50 countries worldwide. All products are manufactured in facilities certified to ISO 13485 and ISO 9001 standards and are supported by CE documentation.
